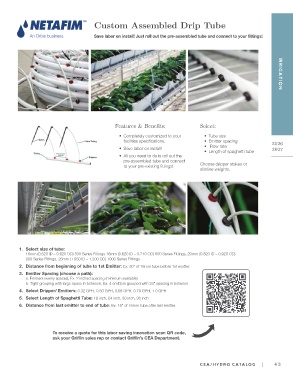

Page 43 - Griffin CEA Catalog- 2026-2027

Custom Assembled Drip Tube

An Orbia business. Save labor on install! Just roll out the pre-assembled tube and connect to your fittings! IRRIGATION

Features & Benefits: Select:

• Completely customized to your • Tube size
facilities specifications. • Emitter spacing 2026
• Flow rate
• Save labor on install! 2027
• Length of spaghetti tube
• All you need to do is roll out the
pre-assembled tube and connect
to your pre-existing fittings! Choose dripper stakes or
slimline weights.

1. Select size of tube:
16mm (0.520 ID – 0.620 OD) 500 Series Fittings 18mm (0.620 ID – 0.710 OD) 600 Series Fittings, 20mm (0.820 ID – 0.920 OD)
800 Series Fittings, 25mm (1.060 ID – 1.200 OD) 1000 Series Fittings
2. Distance from beginning of tube to 1st Emitter: Ex: 30” of 16mm tube before 1st emitter.
3. Emitter Spacing (choose a path):
a. Emitters evenly spaced, Ex. 2 inched spacing (minimum available)
b. Tight grouping with large space in between, Ex. 4 emitters grouped with 24” spacing in between
4. Select Dripper/ Emitters: 0.32 GPH, 0.50 GPH, 0.58 GPH, 0.79 GPH, 1.0 GPH
5. Select Length of Spaghetti Tube: 18 inch, 24 inch, 30 inch, 36 inch
6. Distance from last emitter to end of tube: Ex: 16” of 16mm tube after last emitter.

F

To receive a quote for this labor saving innovation scan QR code,
ask your Griffin sales rep or contact Griffin’s CEA Department.
