Drip Irrigation
Delay Option Filtering
Filter Products

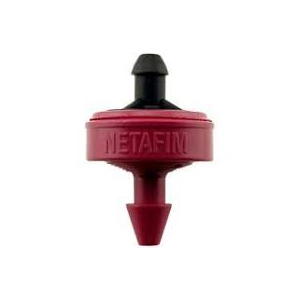

Used as stand allow dripper or part of 4-way dripper assemblies. All the features of the Woodpecker pressure compensating dripper with the added benefit of a "no-leak" device which turns the flow off when the line pressure drops. All the drippers come on and turn off at the same time, leaving the main water line full and ensuring extremely accurate watering from pot to pot. 35 psi Regulator Required For Proper Operation
Impact resistant plastic for long-term service.

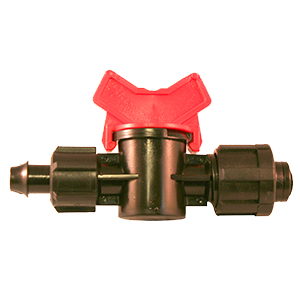

barbed shutoff valve for 16mm tubing. No clamps required
All the features of the Woodpecker pressure compensating dripper with the added benefit of a "no-leak" device which turns the flow off when the line pressure drops. All the drippers come on and turn off at the same time, leaving the main water line full and ensuring extremely accurate watering from pot to pot. Nominal flow rate- .5GPH. 35 psi Regulator Required For Proper Operation

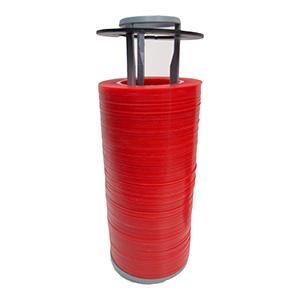

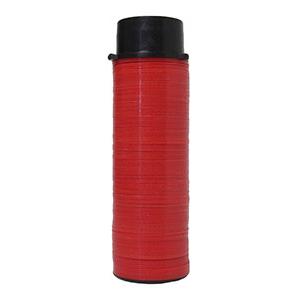

Arkal Discs are flat, grooved plastic rings with a hole in the center. Rings are stacked together to form a cylindrical filter element. The grooves in the rings criss-cross, forming a network that traps both organic and inorganic contaminants, and allows filtered water to pass through. For easy cleaning remove the cover exposing the discs. They automatically separate allowing access to the accumulation of dirt particles. Wash off the discs with a stream of water, reassemble and the cleaning process is complete. A filter should be used with all Netafim watering systems.

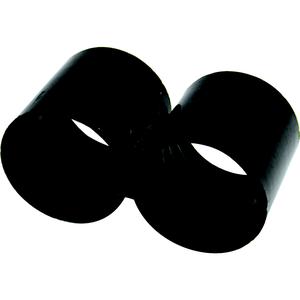

2 different sizes in one- for drippers or hanging assemblies

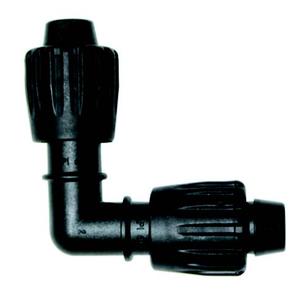

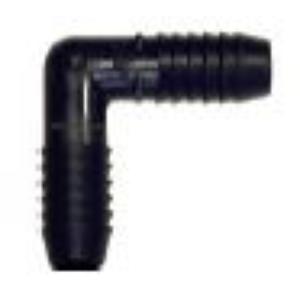

insert x insert elbow
A fast and easy means of closing off the end of your 16mm irrigation line. Can be quicly re-opened for draining.

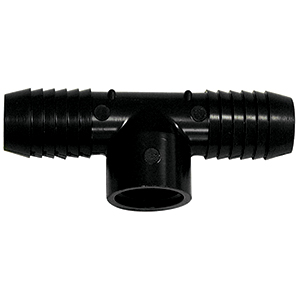

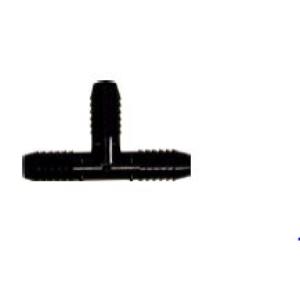

insert x insert x insert 16mm tee
Used with overhead hanging assembly and nozzles. Allows all the nozzles to "open" and "close" at the same time, to create uniform irrigation. Prevents washout below nozzles fcaused from the overhead pipe draining through the nozzle.

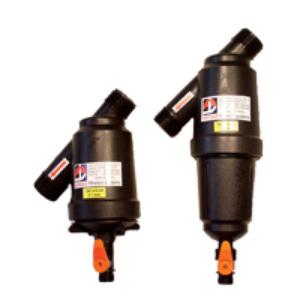

Disc Filters
Discs are flat, grooved plastic rings with a hole in the center. Rings are stacked together to form a cylindrical filter element. The grooves in the rings criss-cross, forming a network that traps both organic and inorganic contaminants, and allows filtered water to pass through. For easy cleaning remove the cover exposing the discs. They automatically separate allowing access to the accumulation of dirt particles. Wash off the discs with a stream of water, reassemble and the cleaning process is complete. A filter should be used with all Netafim watering systems.
Discs are flat, grooved plastic rings with a hole in the center. Rings are stacked together to form a cylindrical filter element. The grooves in the rings criss-cross, forming a network that traps both organic and inorganic contaminants, and allows filtered water to pass through. For easy cleaning remove the cover exposing the discs. They automatically separate allowing access to the accumulation of dirt particles. Wash off the discs with a stream of water, reassemble and the cleaning process is complete. A filter should be used with all Netafim watering systems.
Linear Low Density Polyethylene Tubing should always be used with Netafim Irrigation Systems
Electric Throttling 2-Way Valves (24VAC)
These valves are ideal for ultra high flow or low flow capacity irrigation systems. A built-in 2-way solenoid offers ease of operation and reliability. Standard with a flow control (throttling) handle, large internal water passages for clog resistance and no moving parts in the flow path. The valves can be installed vertically or horizontally and require no maintenance.
These valves are ideal for ultra high flow or low flow capacity irrigation systems. A built-in 2-way solenoid offers ease of operation and reliability. Standard with a flow control (throttling) handle, large internal water passages for clog resistance and no moving parts in the flow path. The valves can be installed vertically or horizontally and require no maintenance.

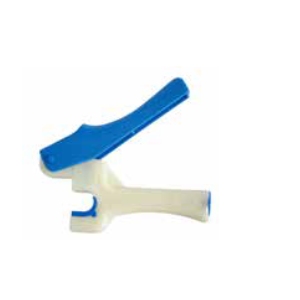

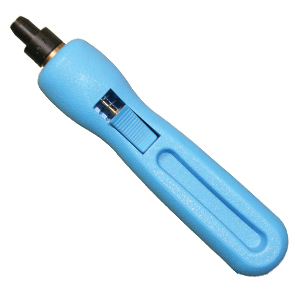

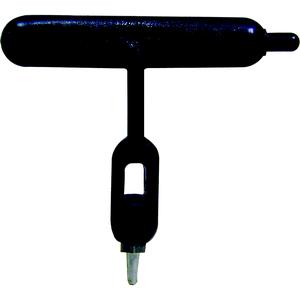

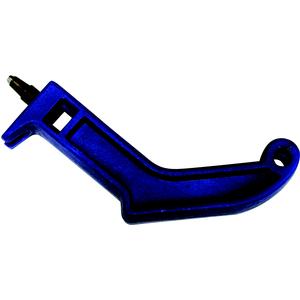

intallation punch for Netafim drippers
3/4" MIPT x 16mm insert adapter

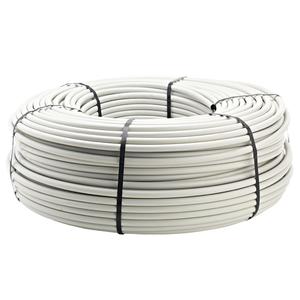

Prepunched UV WhiteT PE Tubing (.520" x .620")
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.

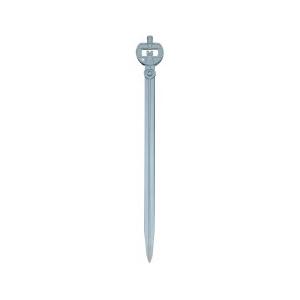

These sticks provide additional benefits to the M.O.D. system. The lower portion is designed to be pressed into the soil, stabilizing the system at the outlet. The Angled Arrow Dripper includes an additional labyrinth to provide extra flow regulating qualities at each outlet and permits the usage of differing tube lengths without creating different flows per outlet.

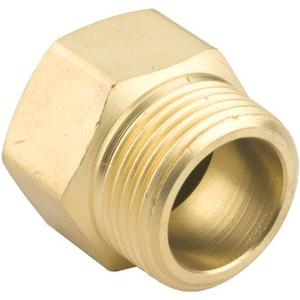

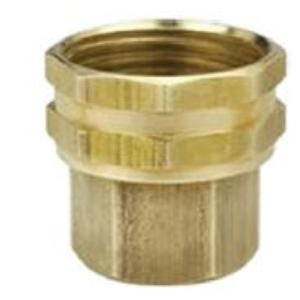

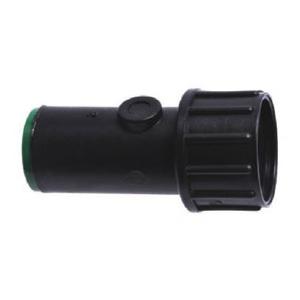

3/4" female hose thread swivel x 16mm compression fitting
Linear Low Density Polyethylene Tubing should always be used with Netafim Irrigation Systems.
Barbed shufoff valve for 20mm tubing (3/4").
Used in assembly of 4-way emitters.
Plastic Weighted, Barbed Stake and Independent Shut-off Assemblies
Delivers precise amounts of water to individual pots. The WPCJ pressure compensated no-leak dripper is ideal for longer runs, when irrigating on slope, or when absolute precision of water volume to each pot is required. The WPCJ's "no-leak" feature stops dripping when the pressure on the main water line drops. All of the drippers on the line start and stop at the same time, leaving the line full of water for the next irrigation. The Woodpecker dripper is used more for nonpressure compensated dripper for shorter level runs.
Delivers precise amounts of water to individual pots. The WPCJ pressure compensated no-leak dripper is ideal for longer runs, when irrigating on slope, or when absolute precision of water volume to each pot is required. The WPCJ's "no-leak" feature stops dripping when the pressure on the main water line drops. All of the drippers on the line start and stop at the same time, leaving the line full of water for the next irrigation. The Woodpecker dripper is used more for nonpressure compensated dripper for shorter level runs.
Plastic Weighted, Barbed Stake and Independent Shut-off Assemblies
Delivers precise amounts of water to individual pots. The WPCJ pressure compensated no-leak dripper is ideal for longer runs, when irrigating on slope, or when absolute precision of water volume to each pot is required. The WPCJ's "no-leak" feature stops dripping when the pressure on the main water line drops. All of the drippers on the line start and stop at the same time, leaving the line full of water for the next irrigation. The Woodpecker dripper is used more for nonpressure compensated dripper for shorter level runs.
Delivers precise amounts of water to individual pots. The WPCJ pressure compensated no-leak dripper is ideal for longer runs, when irrigating on slope, or when absolute precision of water volume to each pot is required. The WPCJ's "no-leak" feature stops dripping when the pressure on the main water line drops. All of the drippers on the line start and stop at the same time, leaving the line full of water for the next irrigation. The Woodpecker dripper is used more for nonpressure compensated dripper for shorter level runs.
This very versatile system uses the pressure compensating dripper and 4-way manifolds with the arrow dripper stakes. The 4-way manifolds can be stacked to allow for the watering of 4 or 8 pots from one emitter. The system enables the grower to water 8 smaller pots by stacking two 4-way manifolds together and then changing over to 4 larger pots by removing one of the 4-way manifolds. The system also allows the grower to vary the tube lengths from crop to crop. Assembly includes a 4-WAY manifold, Flex PVC Hose at desired lengths, and 4 arrow drippers. Please remember to order a 2 GPH Pressure Compensating Dripper with each 4-way assembly. Pot flow rate will vary depending on # of pots being watered from each emitter. A 35 psi regulator required for proper operation.
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.
These sticks provide additional benefits to the M.O.D. system. The lower portion is designed to be pressed into the soil, stabilizing the system at the outlet. The Angled Arrow Dripper includes an additional labyrinth to provide extra flow regulating qualities at each outlet and permits the usage of differing tube lengths without creating different flows per outlet. flows per outlet.
Linear Low Density Polyethylene Tubing should always be used with Netafim Irrigation Systems
This very versatile system uses the pressure compensating dripper and 4-way manifolds with the arrow dripper stakes. The 4-way manifolds can be stacked to allow for the watering of 4 or 8 pots from one emitter. The system enables the grower to water 8 smaller pots by stacking two 4-way manifolds together and then changing over to 4 larger pots by removing one of the 4-way manifolds. The system also allows the grower to vary the tube lengths from crop to crop. Assembly includes a 4-WAY manifold, Flex PVC Hose at desired lengths, and 4 arrow drippers. Please remember to order a 2 GPH Pressure Compensating Dripper with each 4-way assembly. Pot flow rate will vary depending on # of pots being watered from each emitter. A 35 psi regulator required for proper operation.
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.
Prepunched UV WhiteT PE Tubing (.520" x .620")
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.
Improved Control of Water and Fertilizer
*Pressure Compensation (PC) assures the last container in the row gets the same amount of water as the first
*Prevents over watering. The check valve prevents water in the supply pipes from draining into the lowest plants after the valve shuts off
Efficient Operation
Netafim solutions for nursery containers are designed to wet the soil surface evenly to maximize water retention by the soil mix and evenly release liquid or timed-release fertilizers.
*Pressure Compensation (PC) assures the last container in the row gets the same amount of water as the first
*Prevents over watering. The check valve prevents water in the supply pipes from draining into the lowest plants after the valve shuts off
Efficient Operation
Netafim solutions for nursery containers are designed to wet the soil surface evenly to maximize water retention by the soil mix and evenly release liquid or timed-release fertilizers.
Pressure regulators are devices that reduce the pressure of the watering system to a specific psi in order to optimize the performance of the sprinklers or drippers in use. 35 PSI should be used with pressure compensated drippers, or mini-sprinklers. Med flow 3.5-17 GPM
Linear Low Density Polyethylene Tubing should always be used with Netafim Irrigation Systems
Linear Low Density Polyethylene Tubing should always be used with Netafim Irrigation Systems
Prepunched UV WhiteT PE Tubing (.520" x .620")
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.
Fully UV resistant and completely opaque to prevent algae growth. This tubing is not coated or layered white, it is solid white for long-term durability. Netafim's UV White PE Tubing produces cooler water temperatures and enhances plant growth.

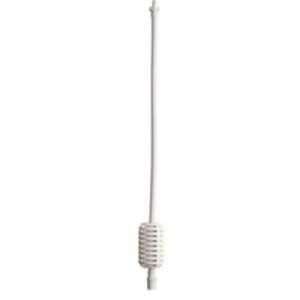

Hanging assembly for overhead irrigation systems. Used with Netafim vibro-spray and spinner/spreader sprinklers. Order #5017065 leak prevention device, adapter(if required) and correct nozzle to complete assembly.
Hanging assembly for overhead irrigation systems. Used with Netafim vibro-spray and spinner/spreader sprinklers. Order #5017065 leak prevention device , adapter(if required), and correct nozzle to complete assembly.
Arkal Discs are flat, grooved plastic rings with a hole in the center. Rings are stacked together to form a cylindrical filter element. The grooves in the rings criss-cross, forming a network that traps both organic and inorganic contaminants, and allows filtered water to pass through. For easy cleaning remove the cover exposing the discs. They automatically separate allowing access to the accumulation of dirt particles. Wash off the discs with a stream of water, reassemble and the cleaning process is complete. A filter should be used with all Netafim watering systems.
Arkal Discs are flat, grooved plastic rings with a hole in the center. Rings are stacked together to form a cylindrical filter element. The grooves in the rings criss-cross, forming a network that traps both organic and inorganic contaminants, and allows filtered water to pass through. For easy cleaning remove the cover exposing the discs. They automatically separate allowing access to the accumulation of dirt particles. Wash off the discs with a stream of water, reassemble and the cleaning process is complete. A filter should be used with all Netafim watering systems.
PCNL Spray Stakes
*Improved Control of Water and Fertilizer Pressure Compensation (PC) assures the last container in the row gets the same amount of water as the first
*Prevents over watering. The check valve prevents water in the supply pipes from draining into the lowest plants after the valve shuts off
*Improved Control of Water and Fertilizer Pressure Compensation (PC) assures the last container in the row gets the same amount of water as the first
*Prevents over watering. The check valve prevents water in the supply pipes from draining into the lowest plants after the valve shuts off
Arkal Discs are flat, grooved plastic rings with a hole in the center. Rings are stacked together to form a cylindrical filter element. The grooves in the rings criss-cross, forming a network that traps both organic and inorganic contaminants, and allows filtered water to pass through. For easy cleaning remove the cover exposing the discs. They automatically separate allowing access to the accumulation of dirt particles. Wash off the discs with a stream of water, reassemble and the cleaning process is complete. A filter should be used with all Netafim watering systems.
shut-off cap for WPS drippers
Hanging assembly for overhead irrigation systems. Used with Netafim vibro-spray and spinner/spreader sprinklers. Order #5017065 leak prevention device, adapter(if required) and correct nozzle to complete assembly.

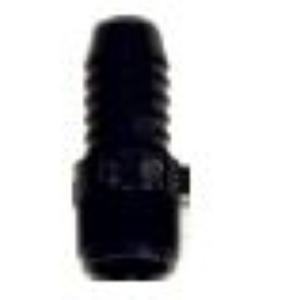

1/2" MIPT x 16mm barb adapter
To be used with all dripper assemblies
Linear Low Density Polyethylene Tubing should always be used with Netafim Irrigation Systems
A labor-saving drip system for watering potted plants. Space-It is thinwall dripline with pre-spaced drippers designed to be placed directly over the top of pots with the location of each dripper visibly marked on the tubing. Positioning of pots (plants) is quick and easyjust place the pot under the mark on the dripline - saving up to 20% in installation labor costs. Injection molded drippers welded into a wall of seamless tubing means the flow path is not subject to distortion during installation and the clear outlet hole allows water to exit right at the outlet. With flexible dripper spacings, Space-It allows you to choose the spacing that matches your pot spacing to fit your needs.
Specifications:
*Wall thickness: 8 mm
*Inside diameter: .636"
*Nominal flow rates: .24 GPH and .38 GPH @ 10 PSI
*Common spacings: 12", 18" and 24"
*Other special spacing available by special order
*Recommended filtration: 120 mesh
Specifications:
*Wall thickness: 8 mm
*Inside diameter: .636"
*Nominal flow rates: .24 GPH and .38 GPH @ 10 PSI
*Common spacings: 12", 18" and 24"
*Other special spacing available by special order
*Recommended filtration: 120 mesh
To be used with all dripper assemblies
